Description

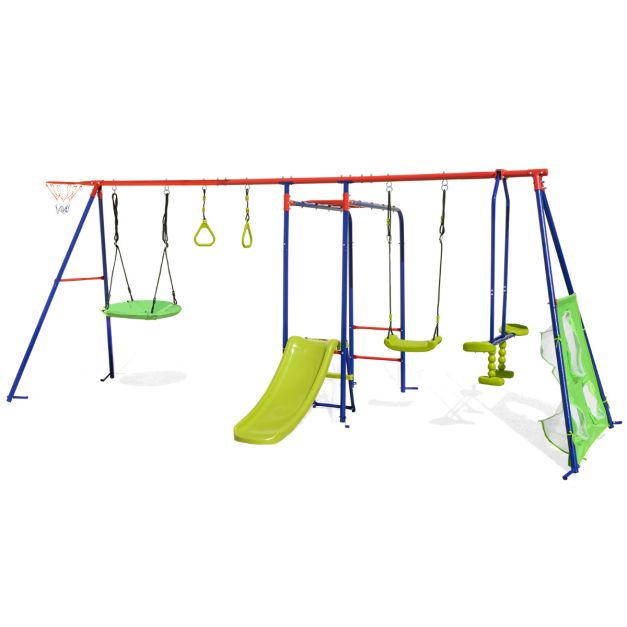

Bring eight play activities into one outdoor setup. This Multicolour set combines a belt swing, saucer swing, two-seat glider, slide, gym rings, monkey bar, basketball hoop and football target. The Red and Blue frame has Green play components and is designed for supervised play for children aged three to twelve.
A choice of ways to play
Children can choose swinging, gliding, sliding, climbing and ball activities. The central section carries the slide, monkey bar and gym rings, with swings and the glider on either side. The activity collage shows separate examples. Keep to the supplied guide’s permitted combinations and clearances so moving seats do not interfere with other play.
Adjust the two swings

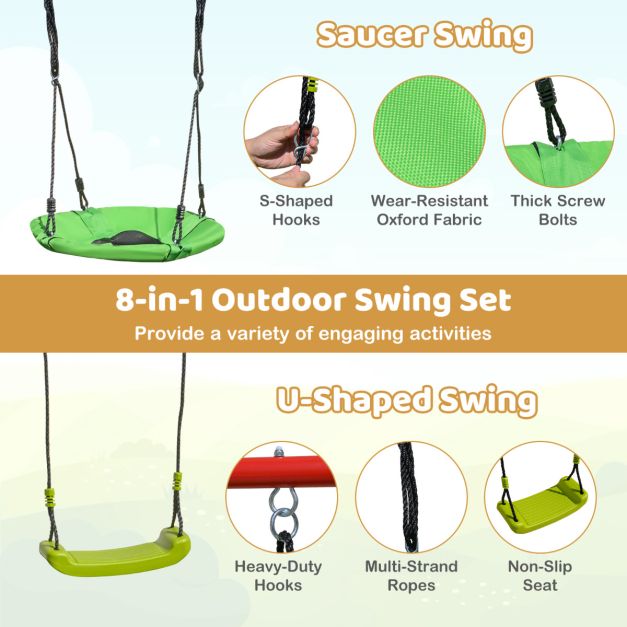

The belt swing and 65 cm saucer swing have adjustable ropes, with a listed swing-height range of 88–128 cm. Each swing seat has a maximum load of 50 kg. An adult must adjust the ropes while the seats are empty and check that all connections are secure before use.
Install and anchor the complete frame

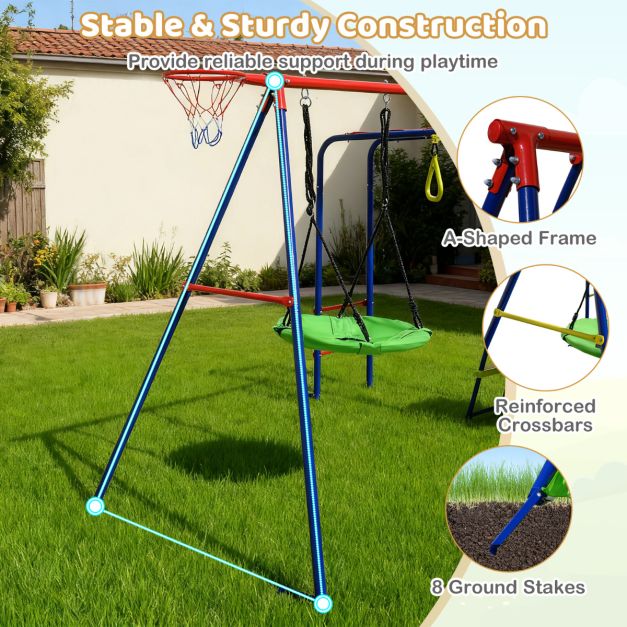

The metal frame has A-shaped side supports and reinforcing crossbars. Eight ground stakes are included. Position, assemble and anchor the set according to the supplied instructions, allowing the additional clear space needed around the slide and full travel of each moving seat.
Dimensions and specifications
- Colour option: Multicolour, with Red and Blue frame and Green play components
- Materials: Metal, PE and fabric
- Overall dimensions: 445 × 225 × 180 cm (L × W × H)
- Slide: 120 × 37 × 56 cm (L × W × H)
- Belt swing seat: 25.5 × 16 cm
- Saucer swing diameter: 65 cm
- Two-person glider height: 70 cm
- Monkey bar height: 160 cm; gym ring height: 126 cm
- Basketball hoop inner diameter: 27 cm
- Listed swing-height adjustment: 88–128 cm
- Age guide: 3–12 years
- Maximum load of each swing seat: 50 kg
- Maximum total load across the set: 300 kg
- Maximum users: Seven children, subject to the total and individual station limits
- Net product weight: 43.5 kg
- Adult assembly and anchoring required
What’s included
- One metal frame with belt swing, saucer swing, two-seat glider, slide, two gym rings, monkey bar, basketball hoop and football target
- Eight ground stakes
- Instruction guide
Balls and other loose play accessories shown are not included.
Installation, use and care
Adult assembly and close supervision are required. Follow the supplied instructions for installation, anchoring, use, station limits and permitted play arrangements. Install on suitable level ground with appropriate impact-absorbing surfacing and all specified clearances. This is domestic outdoor play equipment for children aged three to twelve. Do not exceed 50 kg on either swing seat, 300 kg total across the set, or seven children. The total frame limit is not an allowance for one user or one station; follow the guide’s limits for the glider, slide, rings and monkey bar. Keep swing and glider travel paths and the slide exit clear. Do not walk or climb through a moving seat’s path. Children should remain seated while swinging or gliding. Use the football and basketball activities only when they do not interfere with other stations. Do not add ropes, straps or other attachments. Check anchors, fasteners, ropes, hooks, fabric, seats and slide before play, and stop use if anything is loose, worn or damaged. Keep assembly parts and packaging away from children. Follow the supplied guide for maintenance and storage.
