Description
Online only. Pickup ready in 5 business days. Delivery orders usually dispatch within 24 hours. Please wait for your pickup-ready confirmation before visiting.
Create a place for children’s swinging play with this steel A-frame in Blue/Yellow or Red/Blue. Its wide top bar and two A-shaped supports provide a base for up to two compatible swings, allowing you to choose seating separately to suit your family’s play area.
Choose compatible swing attachments

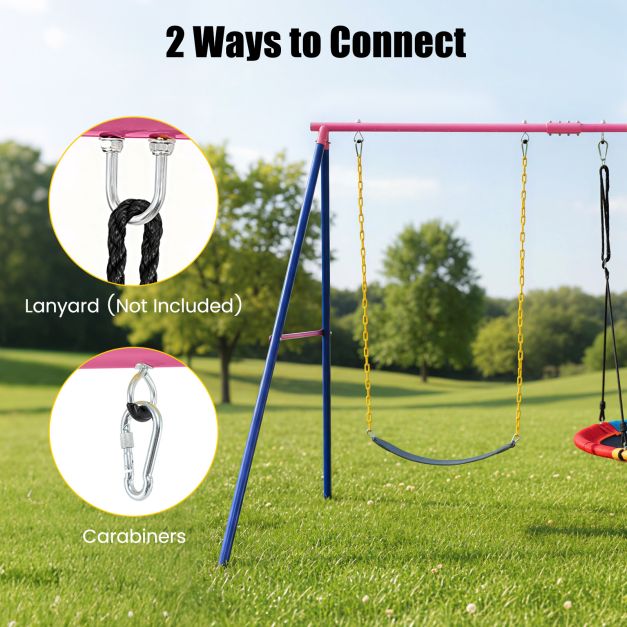

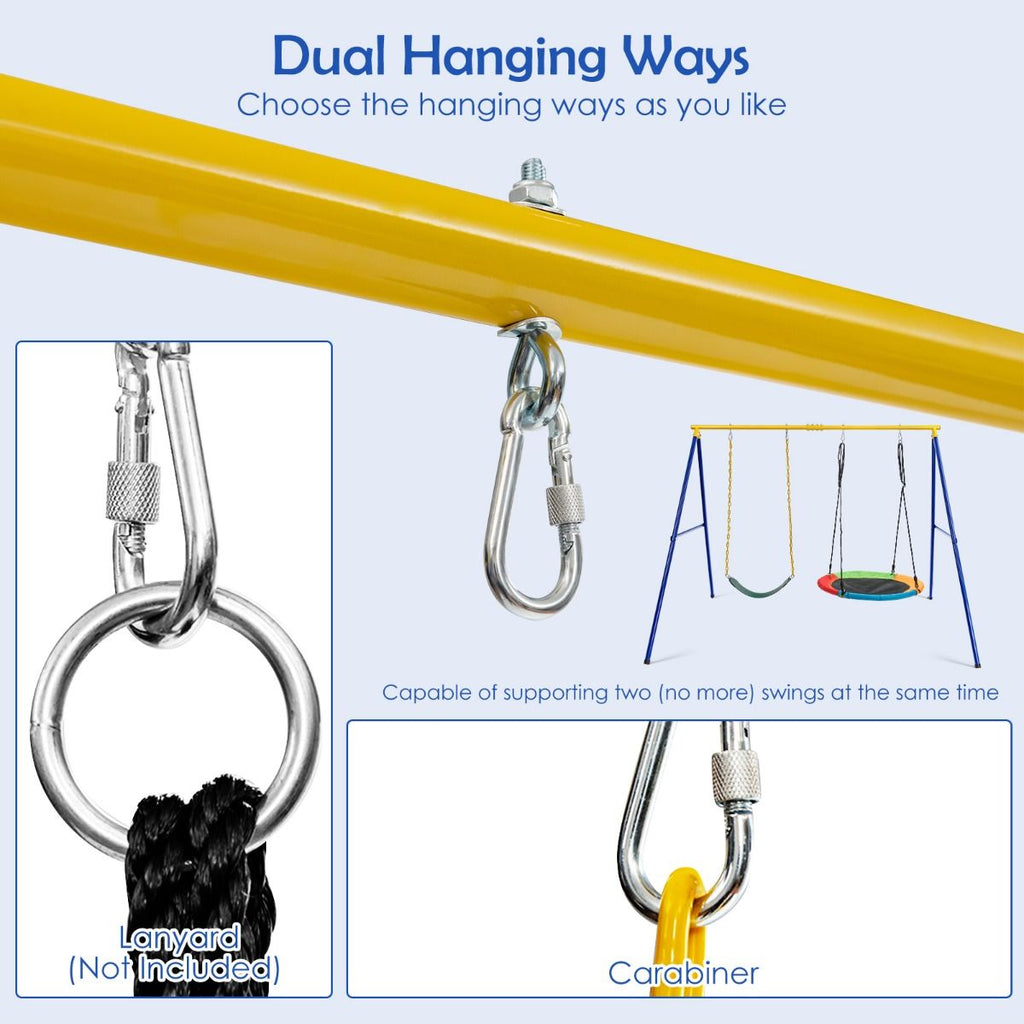

Four carabiners are supplied for the top-bar connections. The illustrated hanging arrangement supports no more than two swings at once; any lanyards needed for your chosen arrangement must be purchased separately. Check each swing’s attachment and use requirements before fitting it.
Anchoring details included

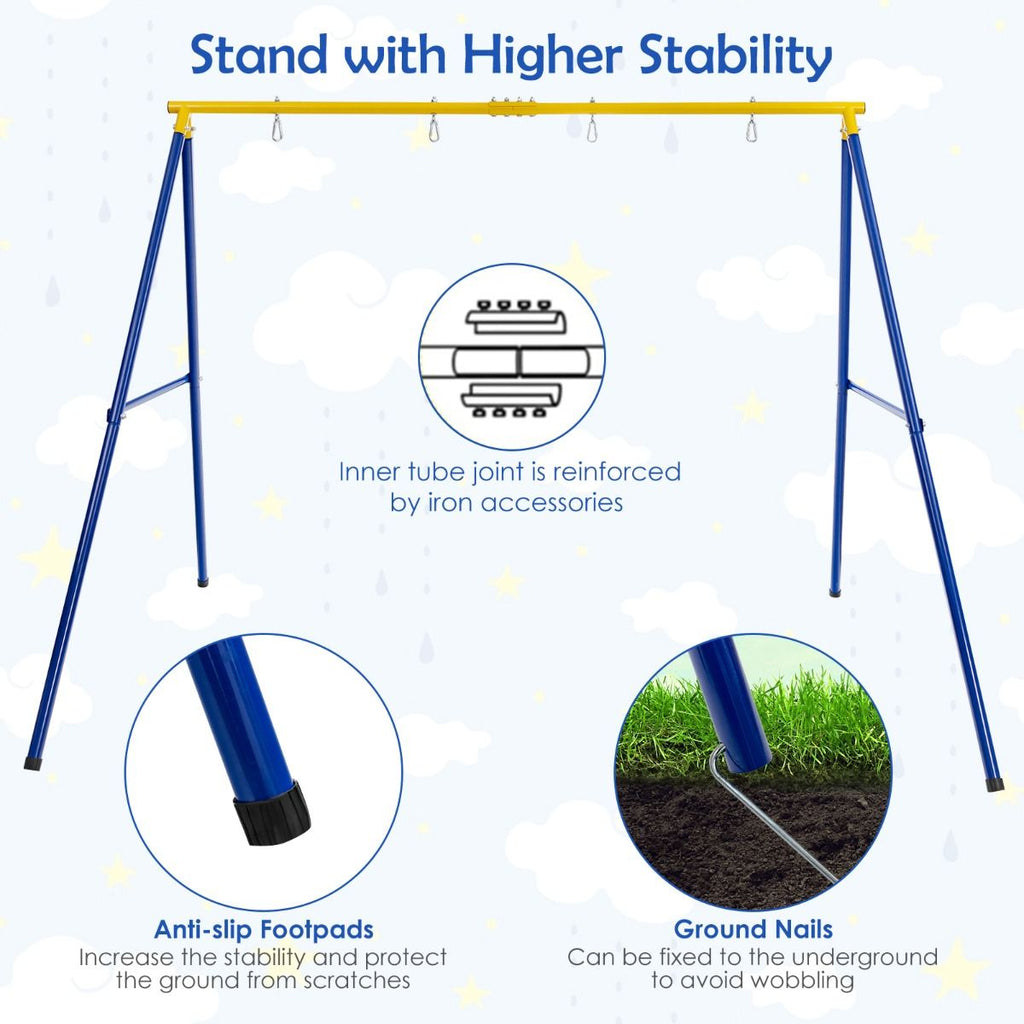

The frame combines side crossbars with a reinforced top-bar joint. Four footpads fit over the legs, while four ground stakes are supplied for securing the frame as directed. Plan the installation area around the complete frame footprint and the swings’ required clearances.
Choose your frame colour

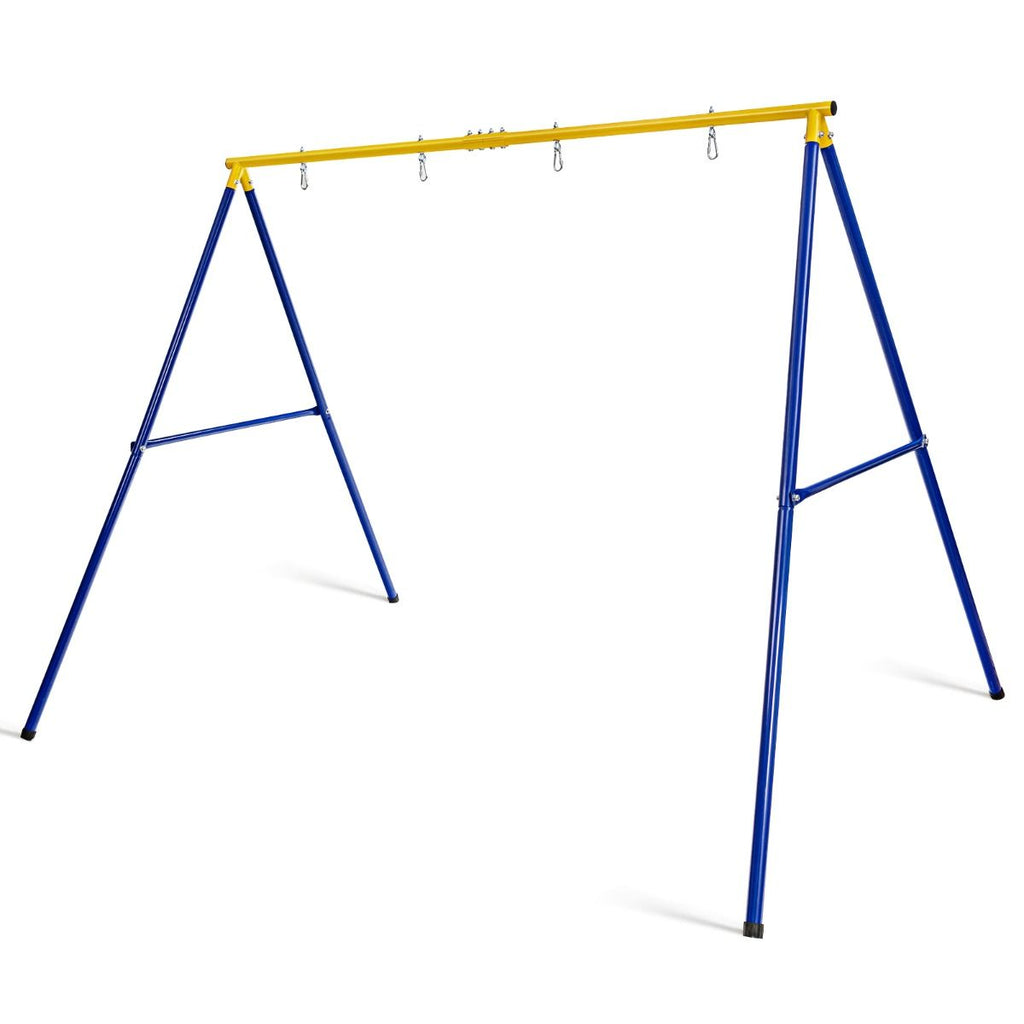

Select Blue/Yellow (NP10525-1YE) or Red/Blue (NP12964-1HS). The Red/Blue frame has blue legs and a pink-red top bar and crossbars, as pictured. Dimensions and net weights vary by colour; check the specifications below before planning your space.

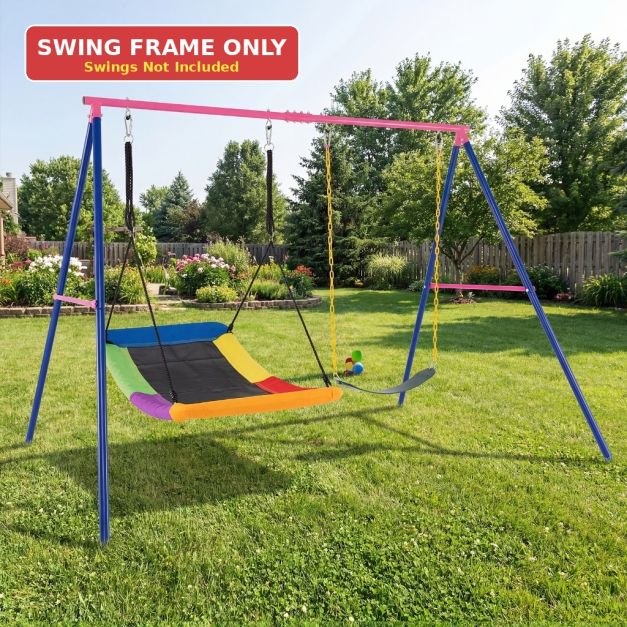

Frame only: swing seats and lanyards shown in the images are not included.

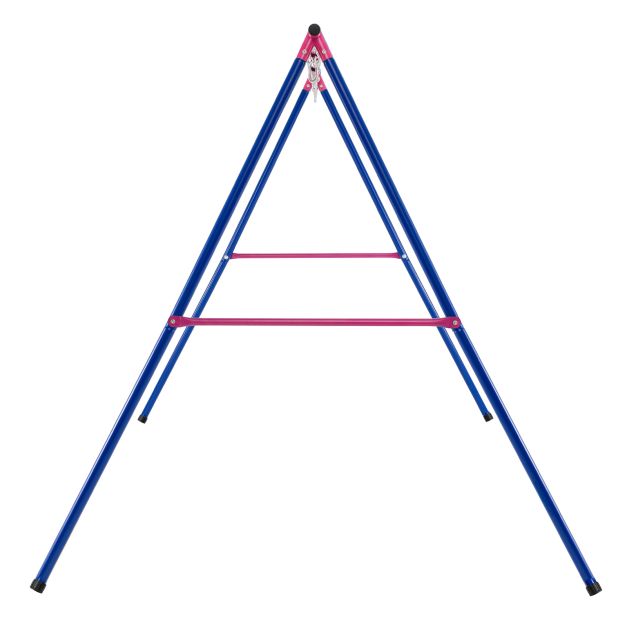

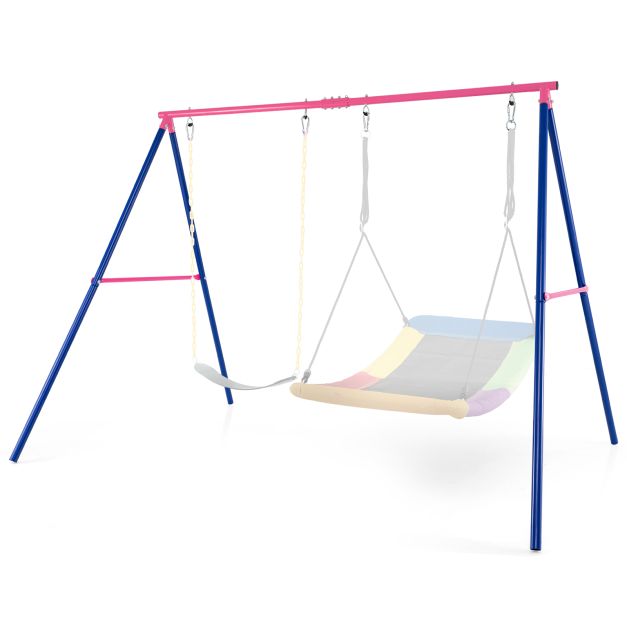

Red/Blue A-frame details
The Red/Blue option has powder-coated metal construction, four foot covers and four ground stakes. Its footprint is 250 × 185 cm and its height is 180 cm. Allow the clearances specified for both the frame and your chosen swing attachments.
Specifications by colour
- Blue/Yellow (NP10525-1YE): 257 × 183.5 × 183 cm overall; steel; net weight 20.6 kg; age guide 3+ years.
- Red/Blue (NP12964-1HS): 250 × 185 × 180 cm overall; powder-coated metal; net weight 20.5 kg; age guide over 3 years.
- Maximum combined frame load: 300 kg. This is the overall frame rating, not an individual seat or user limit.
- Maximum installed swings: two. Seat-specific age, fitting and load requirements also apply.

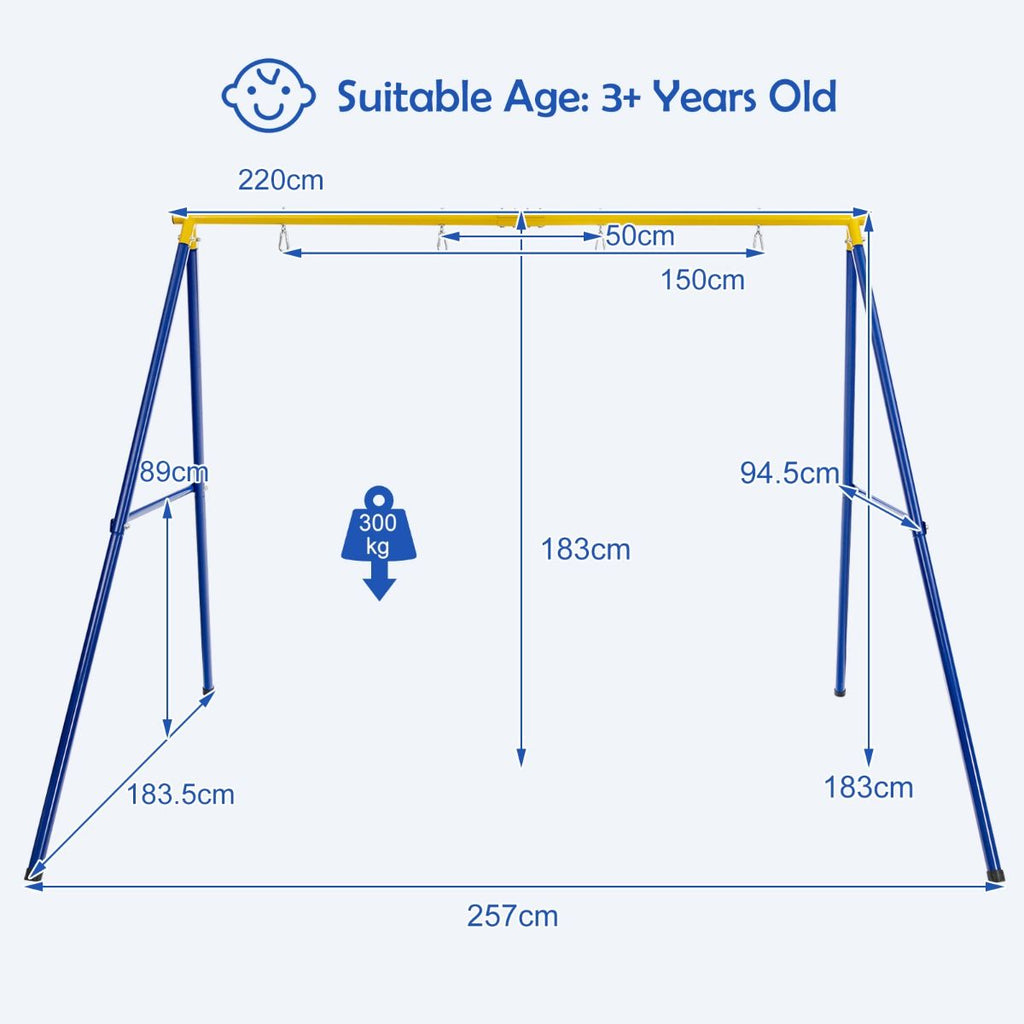

Blue/Yellow dimensions shown below:
What's included
One frame, four carabiners, four ground stakes, four footpads and instructions. Swings and lanyards are not included.
Use and care
Adult assembly and supervision required. Use compatible, securely mounted swing seats. Follow the frame and swing instructions, including the lower applicable load limit and each seat’s age and fitting requirements. Anchor the frame as directed before use.
